What Is Cut and Fill in Construction?

In construction and civil engineering, cut and fill refers to the process of moving earth to create a level surface on a site. It’s a foundational step in projects such as road construction, housing developments, commercial buildings, and large-scale landscaping.

Click Here To View Our Online Cut & Fill Volume Calculator

The Basic Concept (Cut vs. Fill)

• Cut involves removing soil or rock from elevated areas of a site.
• Fill refers to adding soil to lower areas to raise the ground level.

The goal is to balance the amount of earth that needs to be removed (cut) with the amount that needs to be added (fill). When done accurately, cut and fill can:

• Reduce hauling costs
• Prevent over-excavation
• Ensure proper drainage and structural stability

Why Cut and Fill Matters in Earthworks

Incorrect cut and fill planning can lead to:

• Excessive soil disposal or import, driving up costs
• Drainage issues that affect building performance
• Structural problems in foundations or roads
• Regulatory compliance issues if grading does not meet approved plans

That’s why accurate cut and fill analysis is essential — it helps engineers, contractors, and developers optimize earth movement, stay within budget, and avoid costly rework.

In the next section, we’ll break down how cut and fill volumes are calculated and which methods are best for different types of construction projects.

How Are Cut and Fill Volumes Calculated?

Accurate cut and fill volume calculation is essential in any earthwork project. It ensures that the existing terrain is modified efficiently to match the proposed land levels, minimizing waste, over-excavation, and hauling costs.

There are multiple methods to calculate cut and fill, and each depends on the type of surface data, the project stage, and the desired accuracy.

Input Data Required for Cut and Fill Analysis

Before calculations begin, it’s important to collect high-quality terrain data, such as:

• Existing topography surveys
• Contour lines or point cloud data
• Proposed grading plans or comparison surfaces

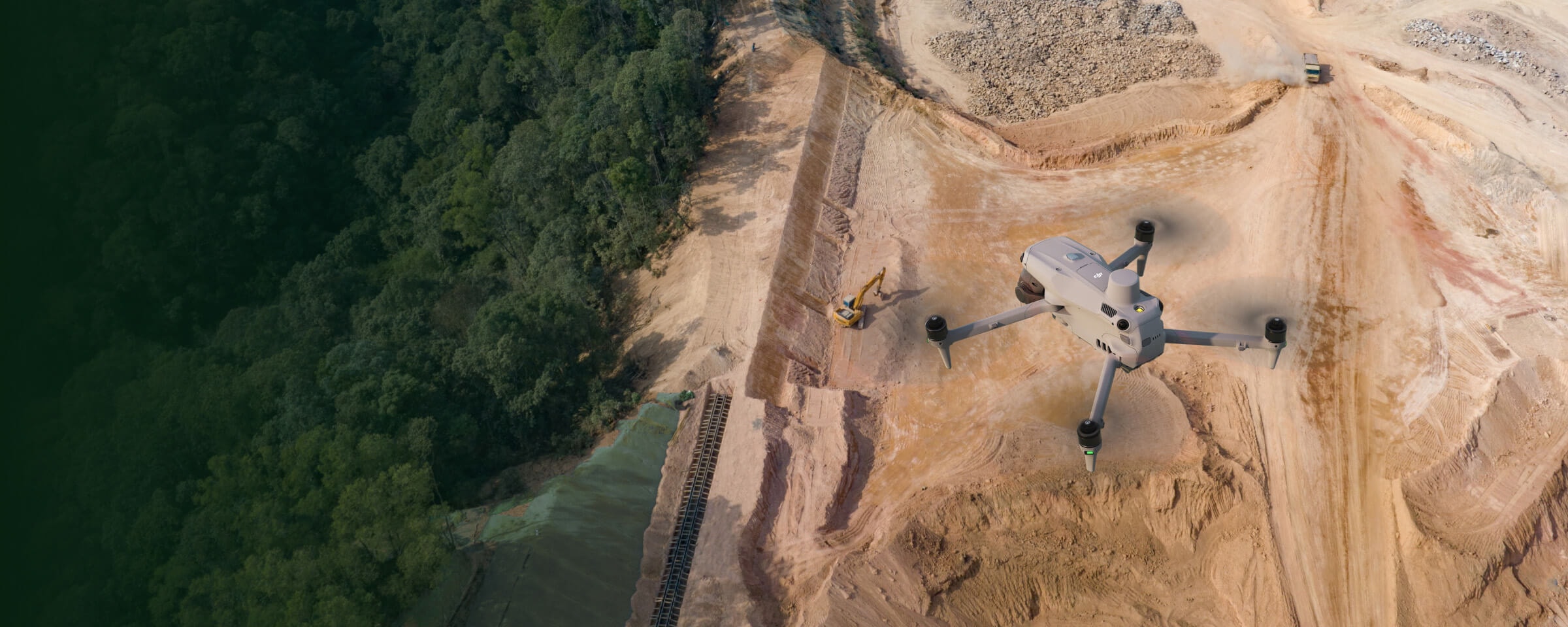

Tools like drone surveys, LiDAR scans, and RTK GPS help gather accurate data about the existing terrain and elevation changes. This terrain is compared against the design surface to identify where material needs to be cut or filled.

Common Methods for Volume Calculation

There are three widely used techniques for calculating cut and fill:

1. Grid Method

This method divides the terrain into a uniform grid and compares elevation differences at each grid point. The cut or fill depth is calculated for each cell, then multiplied by the area to determine volume.

• Grid method depends on resolution: a finer grid offers better accuracy but is more time-consuming
• Suitable for relatively continuous surfaces and simple land grading tasks

2. Cross-Section Method

Used primarily in road and linear infrastructure projects, this method slices the terrain into cross sections and compares existing vs. proposed elevations along each section.

• Requires surface style and alignment
• Useful when terrain features vary significantly along the alignment

3. Triangular Prism Method (TIN Surface)

This method uses triangulated irregular networks (TINs) to create a volume surface between existing and proposed elevations. Each triangular prism formed between surfaces contributes to the volume calculation.

• Best for complex 3D surfaces like slopes or irregular land development
• Often used in software like Civil 3D, Trimble, or Carlson

Volume Dashboard & Software Use

Modern tools provide a volume dashboard where users can view:

• Total cut volume and fill area
• Balance between fill maps and cut and fill maps
• Visual overlays of existing terrain vs. proposed surface

These dashboards speed up analysis and help optimize resource allocation based on terrain conditions, project stage, and fill requirements.

Factors That Influence Volume Accuracy

• Fill factor (soil expansion/compression)
• Resolution of input data
• Differences in surface properties
• Whether the comparison surface includes all grading features

Understanding these variables ensures your calculate volumes output matches real-world excavation needs.

Up next: we’ll explore the tools and software that make cut and fill analysis faster, easier, and more accurate — from spreadsheets to fully integrated CAD platforms.

Tools and Software for Cut and Fill Analysis

Modern earthwork planning relies heavily on software calculations to deliver high-accuracy cut and fill results. While some professionals still use manual methods like paper plans and spreadsheets, today’s tools allow for faster turnaround, better collaboration, and smarter decision-making based on accurate analysis results.

Choosing the Right Tools for the Job

Selecting the right tool depends on factors like:

• Project timelines and size
• Level of detail required
• The need to handle total volumes or net volume
• Whether you’re working from drone surveying, LiDAR, or high resolution images

1. AutoCAD Civil 3D

Civil 3D offers robust support for creating base surfaces and comparing them to proposed designs. It uses connected triangles (Triangulated Irregular Networks, or TINs) to calculate cut material and fill required.

• Ideal for projects needing regular intervals and design control
• Generates detailed fill data and cut volume reports
• Helps with streamlining cut/fill process across large terrain models

Best for: Civil engineers working on complex, multi-phase projects.

2. Trimble Business Center (TBC)

Trimble’s platform supports drone surveying integration and automated earthwork reports. It uses data from field surveys or drones to produce high accuracy surfaces and measure total volumes.

• Supports grid cell or TIN-based workflows
• Integrates well with field equipment for efficient updates
• Calculates average area, fill location, and fill results quickly

Best for: Surveyors and grading contractors who need seamless hardware-software workflows.

3. Propeller Aero / DroneDeploy

Users can upload drone imagery and get results like:

• Net volume, cut material, and more fill needed
• Automatic surface creation using third triangulation and AI
• Time-saving comparisons on the same page using interactive dashboards

These platforms use high resolution images to deliver quick insights and reduce the time from field to final report — a major benefit for teams looking to save time and gain several benefits over traditional workflows.

Best for: Fast-moving site development projects and construction monitoring.

4. Excel & Spreadsheets (Manual Methods)

While not scalable for large jobs, Excel can still be used for fill process calculations using cross-section volumes or simple base surface comparisons. However, this method lacks automation and doesn’t offer high accuracy unless supported by field data and rigorous setup.

Best for: Small-scale site plans, basic comparisons, and budget estimates.

Why Modern Tools Matter

Using digital tools for cut and fill brings:

• Faster project timelines
• Better understanding of environmental impact
• Fewer surprises during construction
• Accurate volume surfaces that reduce rework

Whether you’re grading higher ground or leveling a flat pad, today’s software allows teams to streamline cut analysis and make decisions with more detail and confidence.

Up next: We’ll walk through a real-world example showing how these tools work together to produce accurate earthwork calculations for a construction project.

Example: Cut and Fill Analysis in a Real-World Grading Plan

To understand how cut and fill works in practice, let’s look at a simplified earthwork scenario from a residential development project. The client required grading to prepare the site for foundations, roads, and stormwater drainage.

The goal: transform a sloped terrain into a balanced, level pad while minimizing import/export of material.

Fill Area Identification

The first step was identifying the fill area — low-lying portions of the site that needed to be raised to meet the design elevations. Using a digital surface model generated from drone surveying, the fill zones were clearly visualized and color-coded within the design software.

Calculate Cut Volumes

Next, the team ran an earthwork report to calculate cut volumes. This step compared the existing terrain to the design surface and measured how much material needed to be excavated from higher elevations. The cut material was then matched to fill locations to balance the site as efficiently as possible.

Using Accurate Data for Reliable Results

Because the terrain data came from high-resolution aerial scans and was supported by ground control points, the engineers were working with accurate data from the start. This drastically reduced the risk of rework, which is often caused by poor or outdated topographic inputs.

Creating the Comparison Surface

In the software, engineers created a comparison surface—a digital representation of the proposed grading plan. This surface was layered over the existing topography to visualize differences in elevation, identify areas of concern, and guide earthwork decisions.

Fill Maps and Volume Visualization

The output included dynamic fill maps showing exactly where fill would be placed, at what depth, and how that material volume would impact drainage and subgrade performance. These maps are especially helpful in construction projects where precise staging is needed.

Why an Accurate Cut Matters

Finally, the accuracy of the cut calculation directly influenced cost and schedule. An accurate cut reduced hauling costs, eliminated unnecessary export, and ensured that the site was balanced properly — a key factor in staying on budget and on time.

In the next section, we’ll explore the critical factors that affect the accuracy of cut and fill calculations, including survey precision, soil behavior, and modeling techniques.

Accuracy Factors in Cut and Fill Calculations

Even with the best software and workflows, the accuracy of cut and fill results depends on multiple factors. Errors in terrain modeling or surface alignment can lead to over-excavation, budget overruns, or project delays. Below are the key variables that influence how accurate your volume calculations really are.

1. Quality of Terrain Data

Cut and fill analysis starts with measuring the existing topography. If the base layer (usually a digital elevation model or point cloud) contains errors, every calculation after that will be flawed.

To ensure accurate data, teams should:

• Use high-resolution drone or LiDAR scans
• Verify critical elevations with RTK GPS or total station surveys
• Avoid outdated or interpolated terrain files

2. Precision of the Comparison Surface

Your comparison surface—the digital representation of the final grade—must be clean and complete. Incomplete design surfaces (missing pads, slopes, or transition points) create false cut/fill results.

Best practices include:

• Validating breaklines and contours
• Making sure the surface reflects real construction intent
• Using regular intervals in surface triangulation to avoid spikes

3. Material Behavior and Fill Factor

Not all earth behaves the same. Fill factor (how much soil expands or compacts) can shift the final volumes significantly.

• A 10% difference in shrink/swell could mean thousands of cubic yards miscalculated
• It’s important to factor in soil type, compaction specs, and fill location when adjusting estimates

4. Software Configuration

Accurate results rely on properly configured software. Incorrect settings in grid resolution, triangulation methods, or base surface alignment can produce misleading values.

Some platforms allow users to customize:

• Triangle density
• Inclusion/exclusion zones
• Water features or utility trenches

For high-stakes construction projects, always double-check volume results using different methods or overlays.

Next, we’ll outline proven best practices engineers and contractors can follow to avoid common cut/fill mistakes and improve project efficiency.

Best Practices for Engineers and Contractors

Accurate cut and fill planning isn’t just about using the right tools — it’s also about applying field-tested best practices that minimize rework, optimize material use, and keep your project on schedule.

Below are essential practices engineers, project managers, and contractors should follow at each stage of the cut and fill process.

1. Start with Verified Terrain Data

Always use accurate data from trusted sources. Drone surveys, total station setups, and LiDAR scans are ideal for capturing terrain with minimal error. If you’re relying on high-resolution images, make sure they’re properly georeferenced and validated with ground control points.

2. Review and Validate Comparison Surfaces

Before running any volume reports, validate your comparison surface against design intent. Look for:

• Incomplete grading zones
• Sudden elevation jumps
• Missing pads or slope transitions

Even small gaps can produce incorrect fill area or calculate cut outputs.

3. Run Multiple Volume Scenarios

Use your software’s volume dashboard or reporting tools to compare:

• Balanced cut/fill models
• Alternate grading layouts
• Scenarios that minimize import/export costs

This gives you more control over total volumes and helps manage environmental impact through smarter earth movement.

4. Communicate with Field Teams

Don’t keep cut and fill results siloed in your modeling software. Share simplified fill maps, annotated PDFs, or 3D views with your field crews so they’re working from the same plan — especially in complex construction projects.

5. Consider Building or Using a Custom Calculator

If your team frequently works with site grading, consider building or using a cut and fill calculator to quickly test scenarios. These tools save time, streamline communication, and reduce costly change orders in later stages.

Next, we’ll answer common questions about cut and fill analysis to help you avoid confusion and educate your team or clients.

FAQs About Cut and Fill Analysis

What is the difference between cut and fill?

Cut involves removing soil or rock from higher areas of a site, while fill adds material to lower areas to achieve a level surface. The goal is to balance earth movement to minimize material transport and cost.

Can I calculate cut and fill manually?

Yes, basic volume calculations can be done using spreadsheets and the grid method or cross-section method. However, for larger or more complex jobs, software is recommended to ensure accurate cut and fill area estimates.

How accurate are drone surveys for cut and fill?

With proper ground control points and processing, drone surveying can achieve accuracy within 2–5 cm. This makes it suitable for preliminary grading, progress tracking, and even final comparison surface generation.

What’s the best method for calculating volumes?

It depends on your project. The grid method works well for flat or regular surfaces. For more complex terrain, triangular prism methods using TIN models provide higher accuracy and better visualization through fill maps and dashboards.

Final Thoughts: Why Accurate Cut and Fill Matters

Cut and fill calculations are more than just numbers — they’re the backbone of efficient earthwork planning. From grading flat pads to building roads across challenging terrain, accuracy directly impacts your project timelines, costs, and compliance.

Looking to simplify your workflow?
Click here to view our custom cut / fill calculator. This will help you visualize volumes instantly and make informed decisions faster.

Bookmark this guide and share it with your team — accurate earthwork starts here.
