This project involved capturing over 1,200 high-resolution aerial images to generate a detailed 3D model of a steep hillside property along Red Rock Rd in Scottsdale, Arizona. The resulting dataset provides accurate terrain representation for planning, design, and site analysis.

1 Day

Project Completion

2-5cm

Accuracy Achieved

Delivery

3D Models

Oblique Mapping
3D Modeling
OBJ Mesh 3D Model
Photogrammetry Mapping
Scottsdale-AZ-Reality-Capture

Scottsdale Hillside Digital Twin

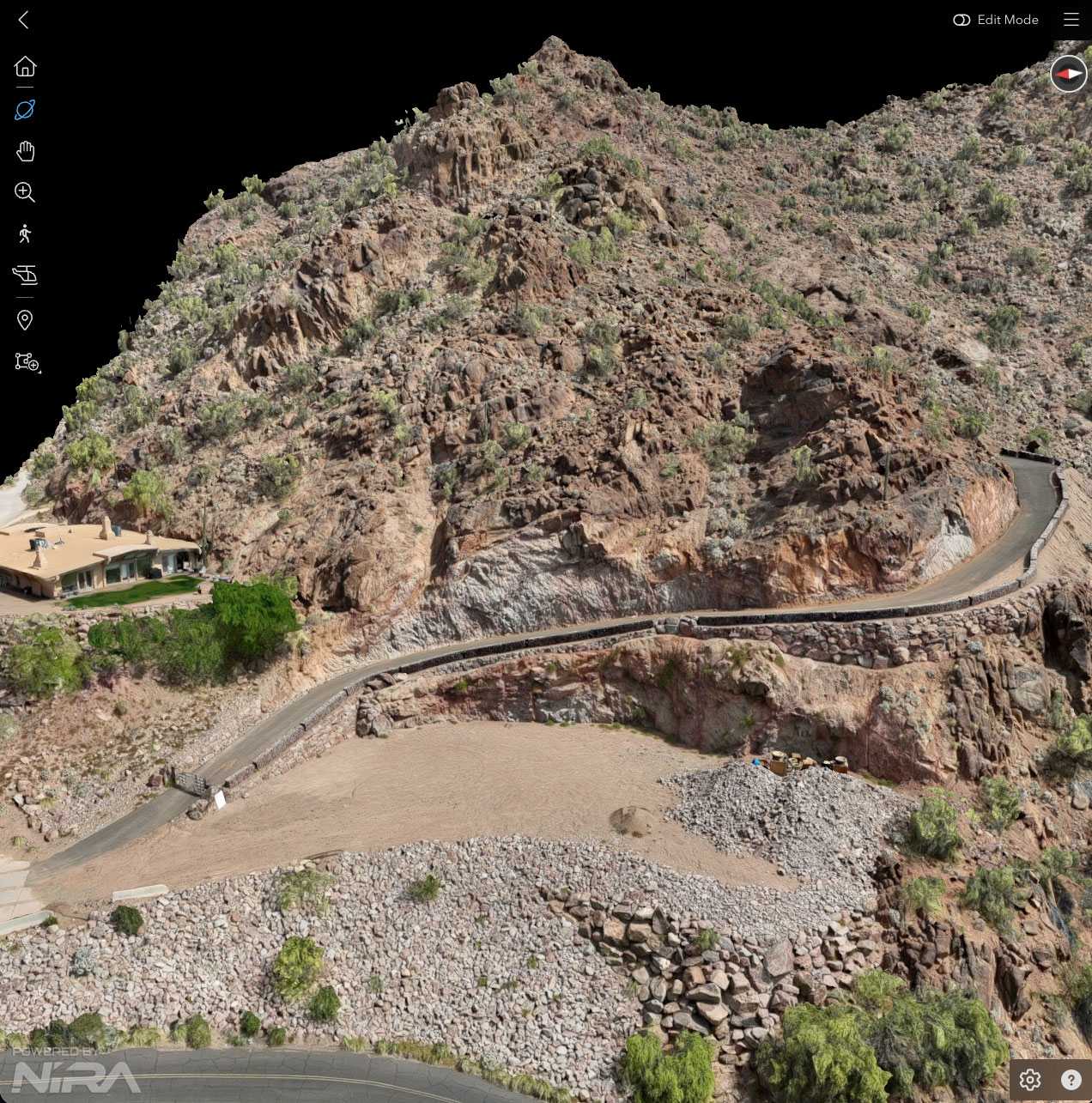

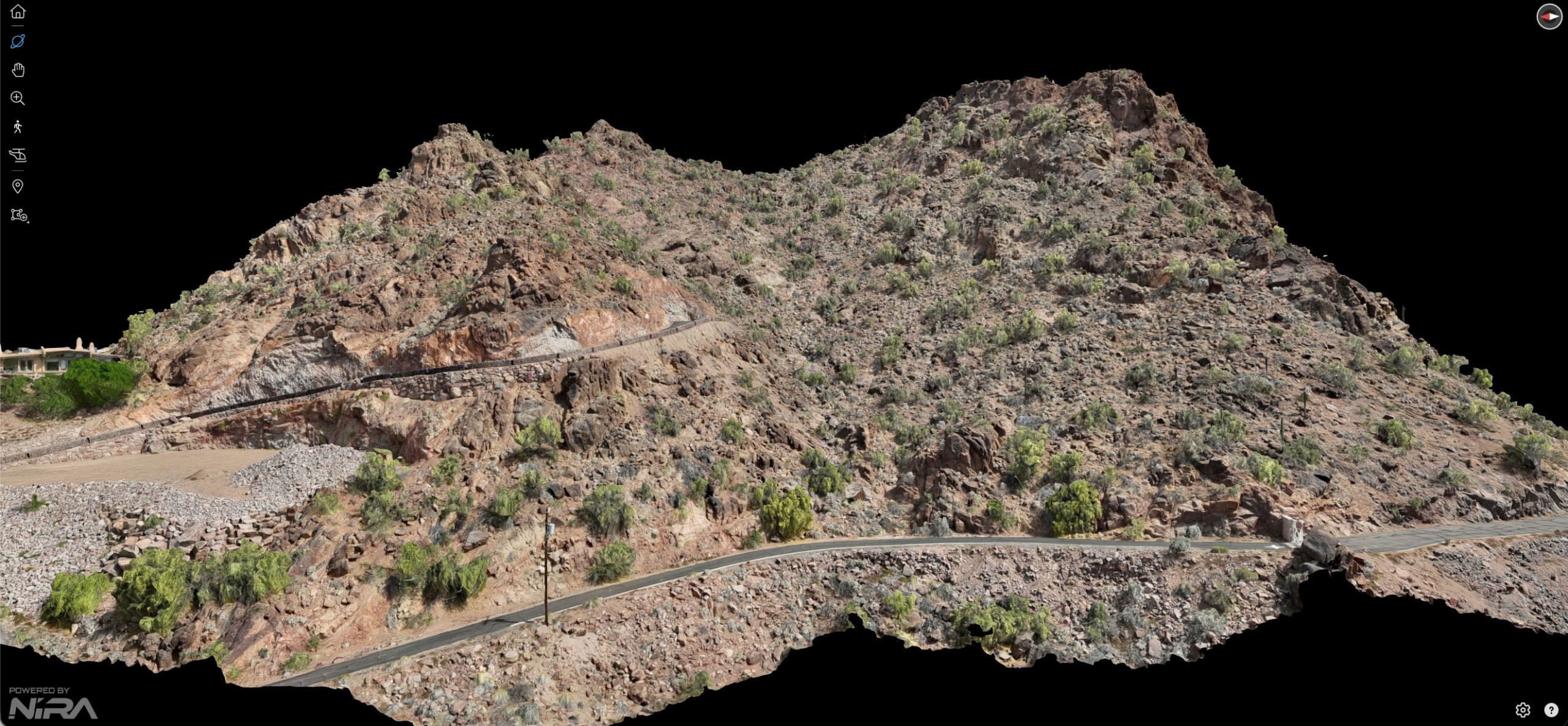

This interactive 3D model was generated using high-resolution drone photogrammetry, capturing over 1,200 images across a steep hillside property in Scottsdale, Arizona. The dataset delivers a highly detailed, true-to-scale digital representation of the terrain, including elevation changes, surface features, and surrounding context.

Project Overview

AeroViews was commissioned to capture high-resolution 3D spatial data of a steep hillside property in Scottsdale, Arizona to support the integration of an existing architectural model into a real-world environment. The objective was to create a true-to-scale digital representation of the terrain that could serve as an accurate base for design visualization and planning.

Using advanced drone photogrammetry, our team captured over 1,200 high-resolution images across complex elevation changes and rugged terrain. The dataset was processed into a detailed 3D model, preserving elevation accuracy, surface conditions, and surrounding context.

This model allows the client to seamlessly insert and align their architectural design within the existing terrain, enabling precise visualization of how the structure interacts with the hillside. From slope relationships to site placement and access considerations, the model provides critical context that cannot be achieved with traditional 2D data alone.

The result is a highly accurate digital environment that supports design validation, stakeholder presentations, and more informed decision-making for hillside development projects.
